We take care of your warewashing!

MTF

MULTI-TANK
FLIGHT-TYPE
DISHWASHERS

Versatile. Powerful. Tailor-made flight-type dishwasher. For large-scale dishwashing. Economical and reliable. Everything rus smoothly.

Winterhalter MTF flight-type dishwasher

NO EXPERIMENTS.

Large-scale dishwashing of consistent items. Fixed meal and washing times that are repeated regularly. Day in, day out, week in, week out. A job for the MTF: the efficient multi-tank flight-type dishwasher does its job effortlessly. No matter what comes its way. It’s easy to use and economical. Modular design and individual configuration. Perfectly suited to your washing needs. And designed for the best washing performance. A machine you can rely on, and which guarantees safety. In the kitchens of refectories and canteens. Of large hospitals and nursing facilities. Everything under control.

SPEAK DIRECTLY TO OUR EXPERTS!
We want you to be absolutely confident in your decision to choose Winterhalter. Work with one of our experts to find out whether the MTF is the right dishwashing solution for you. Simply call or email us.
MTF PRODUCT BENEFITS

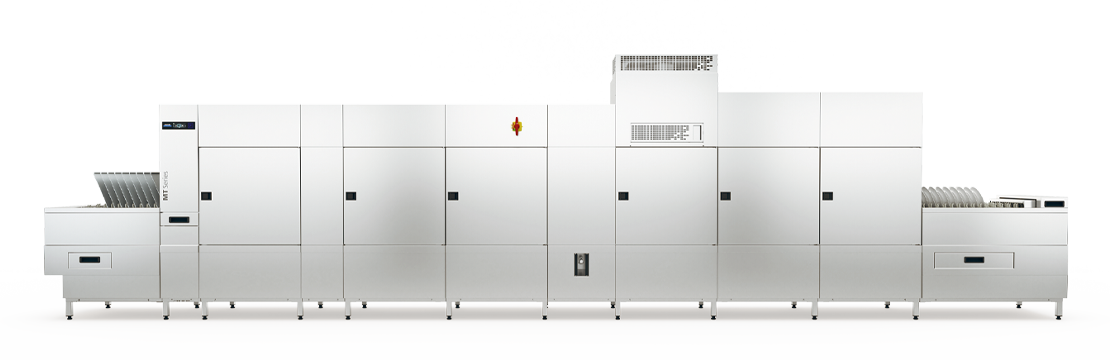

Winterhalter MTF flight-type dishwasher
HYGIENE SAFETY

The MTF is designed for the highest hygiene standards. With your machine architecture. Your hygiene and cleaning concept. Your special programmes and equipment details. It therefore meets all the requirements of the DIN standard.

USER-FRIENDLY

Touch screen with self-explanatory pictograms. Intuitive programme selection. Doors that open 180°. Open the unit effortlessly with just one finger. The well conceived details make operation of the MTF simple, safe and convenient.

PERFECT WASH RESULTS

The MTF warewashing system is extremely efficient. It ensures cleanliness and hygiene of the highest standard. At all times. Even with large loads of dishes.

ECONOMICAL

With integrated economy functions: thanks to innovative technology in the rinse zone, water consumption is reduced to a minimum in the MTF. This also significantly reduces the consumption of energy and washing chemicals. Overall, that means lower operating costs. And greater cost-efficiency.

Winterhalter MTF flight-type dishwasher

Fixed peak times and large volumes of wash items. We have designed the MTF specifically for these challenges. It’s part sprinter and part marathon runner in one, with extreme staying power at high speeds

Norman Kammler, Senior Product Manager International

MTF PRODUCT FEATURES

Intelligent use of energy: the MTF can be fitted with integrated »Energy« exhaust air heat recovery as an option. This uses the energy from the warm exhaust air to pre-heat the cold inlet water. This reduces energy consumption considerably and lowers operating costs.

The cleaner the wash water, the better the wash result. That’s why the MTF comes with an efficient wash water filtration system. Large dirt particles are caught in the individual zones by removable strainers. Mediamats then filter out the finest particles, such as coffee grounds. A pump inlet filter protects the pump from mechanical damage. As a result, the wash water remains clean at all times.

In addition to »Energy« exhaust air heat recovery, the even more efficient »ClimatePlus« heat pump is also available as an additional energy saving option for the MTF: this not only draws on the thermal energy from inside the machine to heat the tank and rinse water – it also uses the heat from the air in the room. This saves up to 16 kWh per operating hour. This reduces energy consumption considerably and lowers operating costs.

Start heat pump animation


Note: Fluorinated greenhouse gases contained in a hermetically sealed device; refrigerant R134a, 2.19 kg, 3.1 tonnes of CO2 equivalent; greenhouse gas potential 1430.

The touch screen on the MTF is more than an operating panel: it is a self-explanatory communication and control platform that is intuitive to use. Optical and acoustic signals not only provide information about the machine status, they also indicate any errors that occur. The optional external water treatment system can also be monitored. Upon entering their PIN, chefs and service technicians are able to enter a secure area in which operational and hygiene-related data can be accessed.

An innovative feature of the MTF: the pre-wash, main wash and rinsing zones only operate when they are activated and required by items enerting the relative areas. This conserves resources and lowers your operating costs. Because water, power, detergent and rinse aid are used efficiently and economically.

Behind the flight-type dishwasher of the MT Series there is a carefully thought-out concept for perfect hygiene and convenient cleaning. The tank is deep-drawn. All this means: there are no hiding places or concealed corners in the interior in which dirt can accumulate or deposits can form. A hygiene door that opens 180° allows ergonomic access for cleaning the interior of the machine. In conjunction with the integrated self-cleaning programme, cleaning work is reduced to a minimum.

At the end of a working day: The MTF has a guided self-cleaning programme, to ensure the machine works perfectly for many years. Fully automatic cleaning of the interior of the machine is started using the touch screen. Rotating jets in the cabinet roof automatically clean the interior with fresh water. User-friendly pictograms on the display then guide you through the subsequent manual cleaning stages. The drain pump takes any residual water out of the machine and prevents deposits or odours.

Sparkle and shine: the demands on a warewasher are particularly high when it comes to washing glasses. The MTF therefore has an optional special programme: at the touch of a button, all of the important factors in the washing process are adjusted to glass washing. And if your MTF is equipped with reverse osmosis, this is activated automatically for rinsing.

An alternative to raised installation: the MTF can be optionally ordered without feet - for installation on a base provided by site. This makes cleaning the floor easier because no dirt can accumulate between the bottom of the machine and the floor.

Breaking new ground: the detergent saving device uses a special process for additional savings on operating costs. To put it simply: only 50% of the water in the rinse zone is fed back through the main washing zone and into the pre-wash zone. The other half goes directly into the pre-wash zone – via a heat exchanger. This saves on chemicals and consumes less energy.

Would you like the processes in your kitchen to run perfectly? Do you want them to be tailored to the space you have at your disposal? The MTF programme of accessories includes various clearing and sorting stations for just this purpose. For an efficient and ergonomic approach to work.

What should you do with small items and glasses in a flight-type dishwasher? Ideally, these should be placed in the wash racks that are available as accessories for the MTF – with a compartment divider specially designed for small and delicate wash items. This also guarantees a perfect washing and drying result for these items.

Wash rack brochure

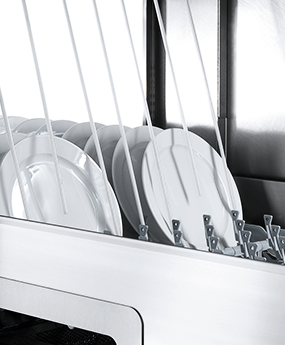

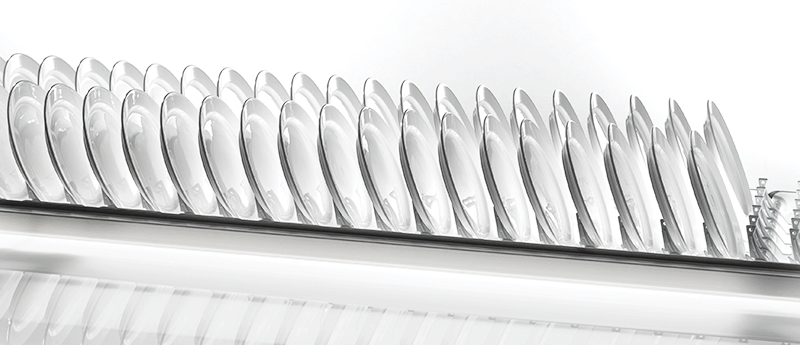

The perfect fit: you can configure the conveyor belt of the MTF to the exact dimensions of your dishes. For dishes and trays, there is the universal or full finger belt with 65 mm clearance. The 90 mm universal finger belt is perfect for warming trays. And the flat belt is ideal for glass racks (600 mm x 400 mm).

For serious situations: the optional data interfaces on the MTF (RS 422 and RS 232), hygiene-related operating data can be formally recorded. This provides you with continuous monitoring of your hygiene levels, ensuring you are always operating safely.

The MTF represents high-quality design and workmanship and comes with full double-skinned insulation. The full effect of this concept is only achieved when the base plate is closed. This further increases the cost-cutting effect of the heat insulation and considerably reduces machine noise.
