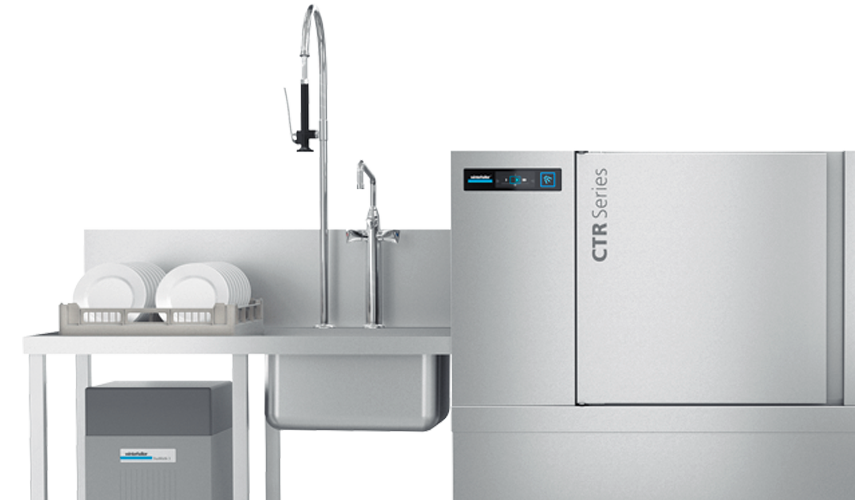

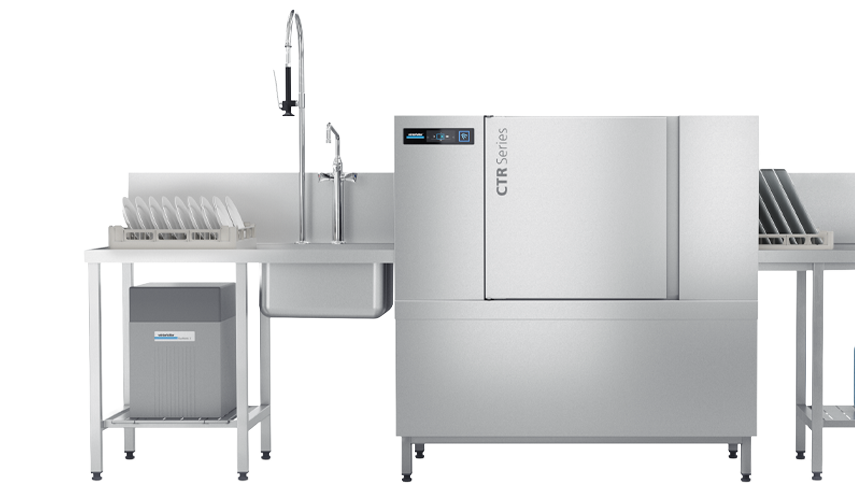

CTR
Compact rack conveyor
dishwasher

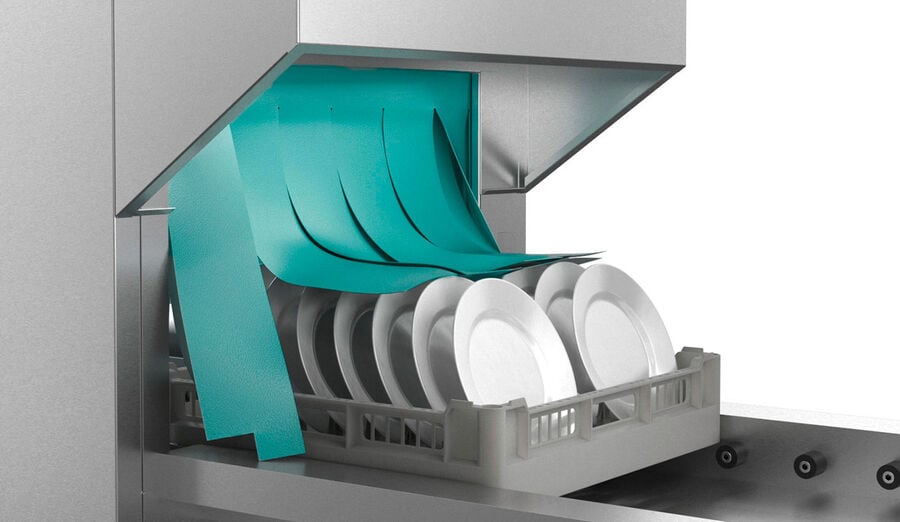

Rapid washing speed. In the smallest space. The compact rack conveyor dishwasher. Individually configurable with maximum flexibility. Excellent performance.

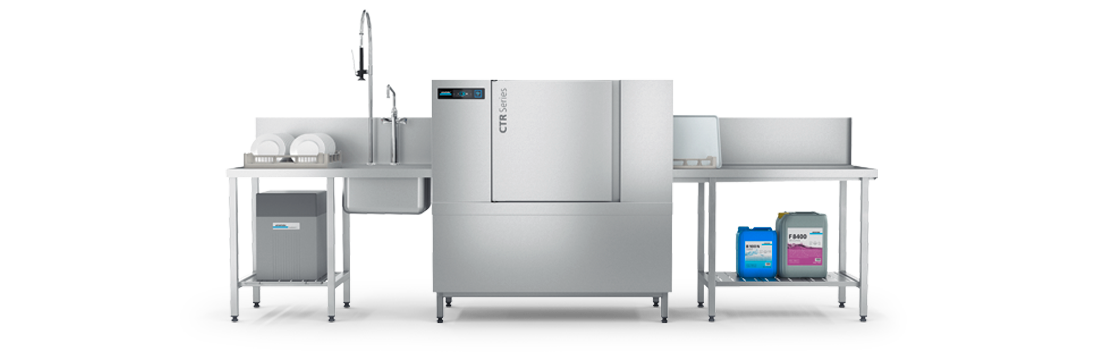

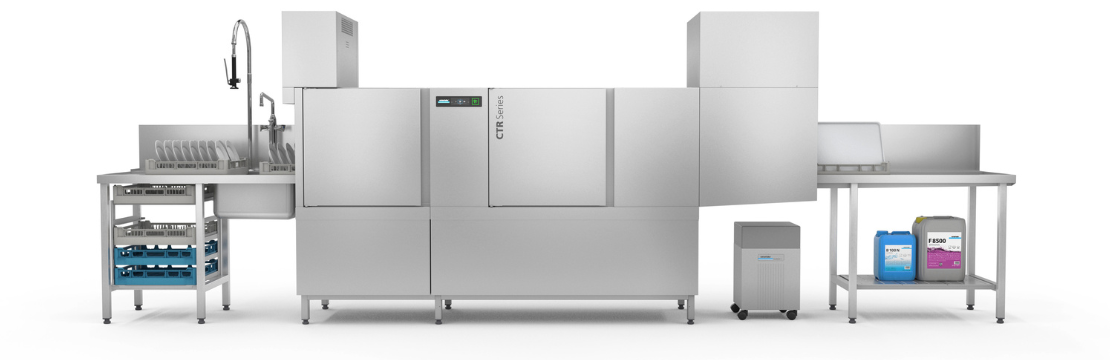

Everything is possible: with the small rack conveyor dishwasher CTR.
It has to be compact. Because space is usually tight in the kitchen. It has to be fast. Because there’s a lot to wash at peak times. It has to be modular. So it can be tailored precisely to your requirements and wishes. And naturally it should also be economical to operate. What sounds impossible becomes reality with Winterhalter's CTR: excellent washing performance with compact dimensions. Up to 195 racks per hour. Low resource consumption and attractive operating costs. Maximum hygiene safety – and immense flexibility. This is thanks to the modular system, which enables the CTR to be easily planned, individually configured and retrofitted. The perfect solution for 100 to 400 diners.

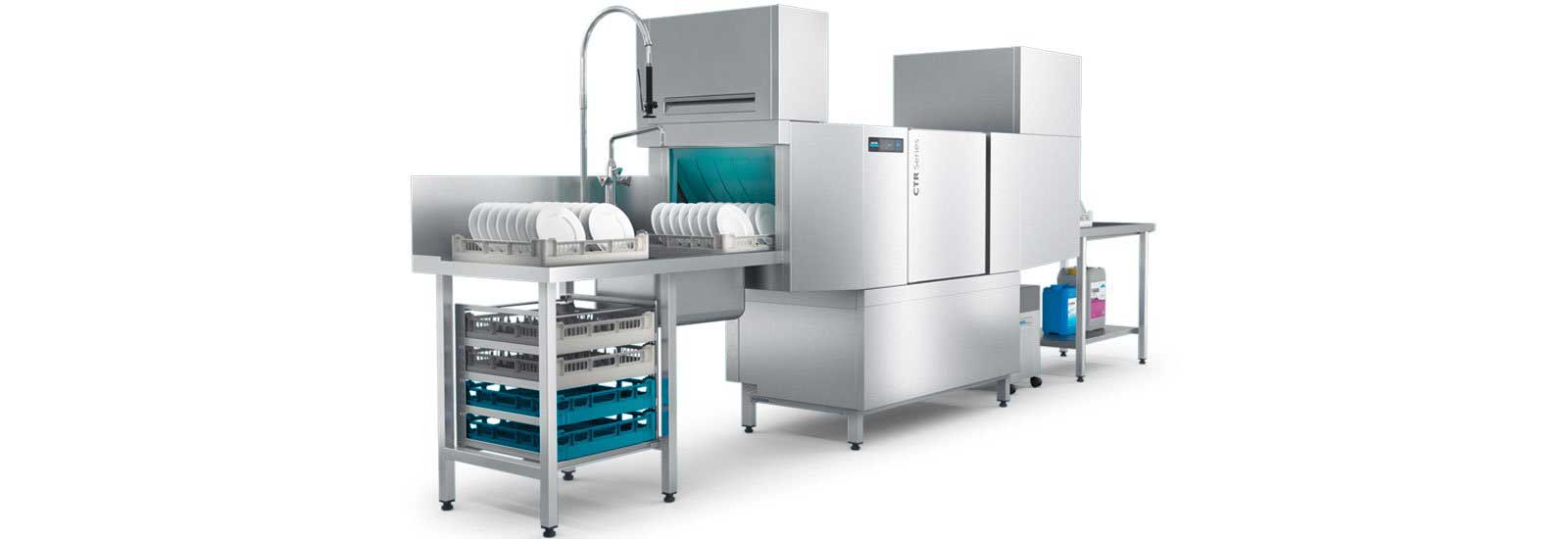

It offers a wide range of machine variants, is available with up to three tanks and has modules and features that can be retrofitted: the CTR is based on a modular system and can be customised to precisely meet your individual requirements. Even in confined spaces.
 |  | |
| 1 or 2 tanks | 2 or 3 tanks | |
|---|---|---|
Model

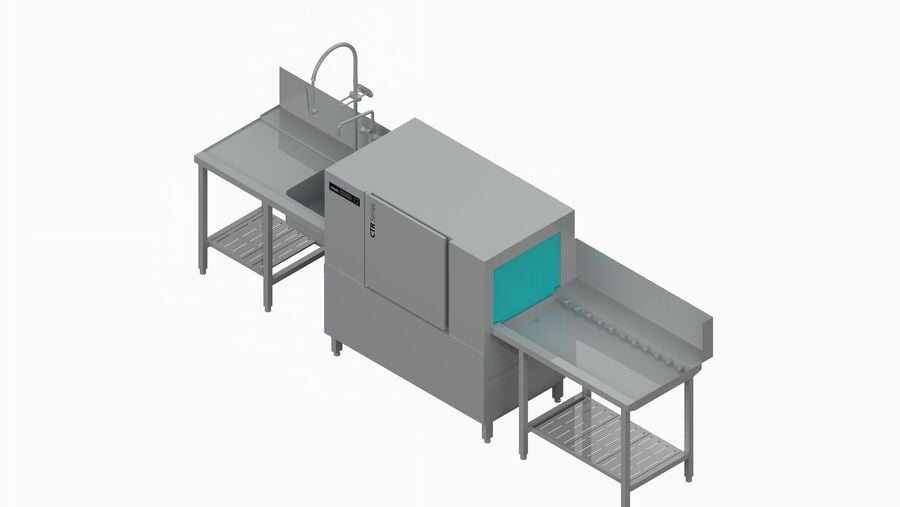

| CTR M | CTR L |
Racks/h | Up to 195 racks/h | Up to 195 racks/h |
Length | Length: from 1,400 mm | Length: from 1,600 mm |

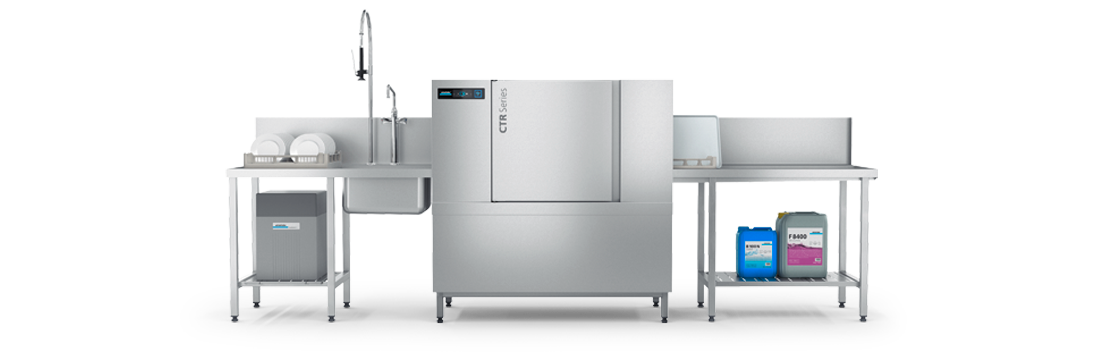

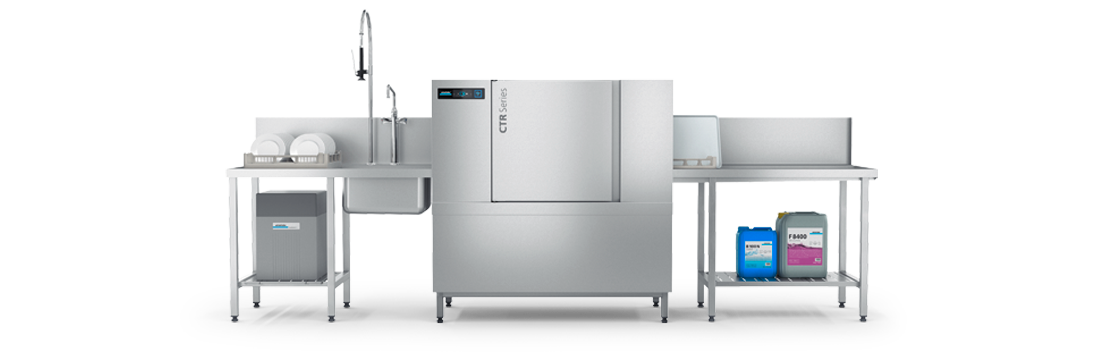

Product features
of the compact rack conveyor dishwasher CTR
12345678
Hygiene mode
Hygiene mode is a product feature offered only by Winterhalter conveyor dishwashers: if the tank or boiler temperature falls below the set value, the CTR automatically reduces its transport speed. This guarantees full hygiene safety and DIN-compliant washing results at all times.

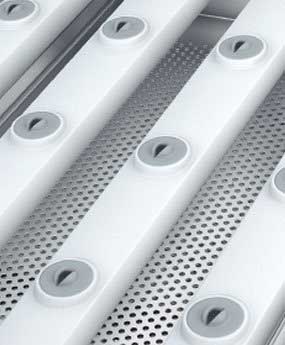

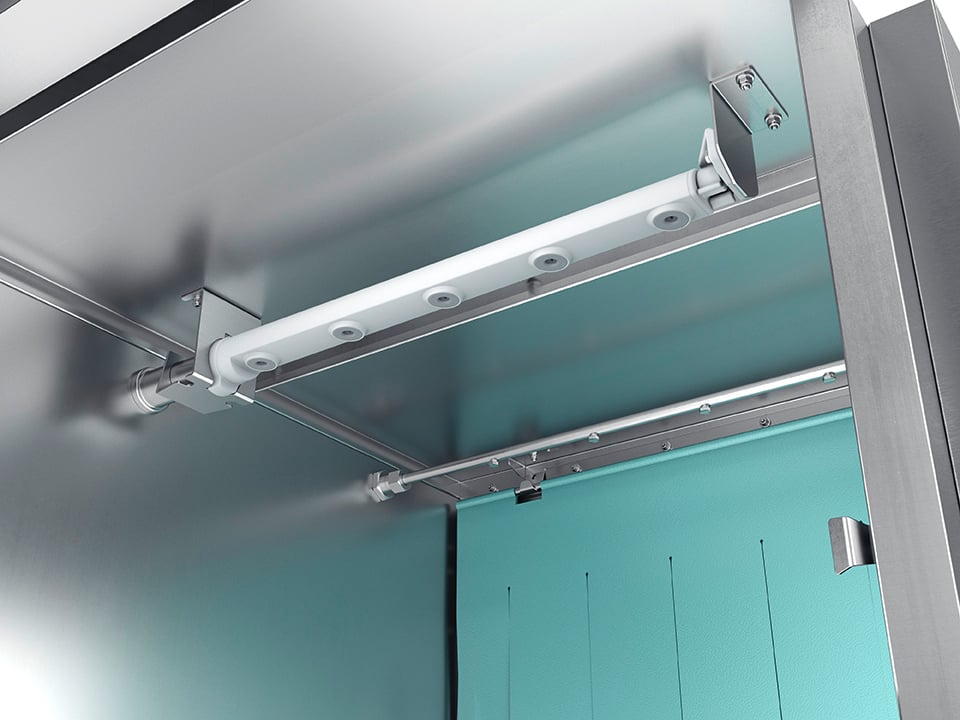

Dual rinse
The CTR comes with a dual rinse system comprising a pumped rinse and fresh water rinse. This complete system returns optimum rinse results and minimises operating costs.

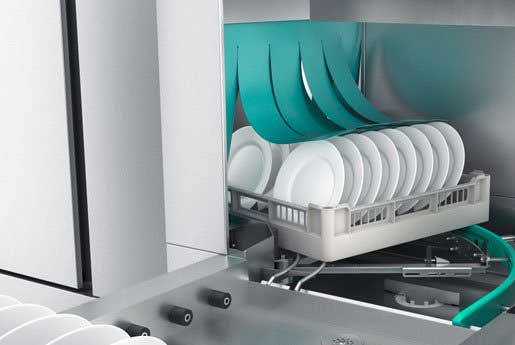

Item-controlled zone activation
The CTR uses water, energy and chemicals both purposefully and economically. The individual zones for pre-wash, main wash and rinse are only activated when there are actually wash items in the respective zone. This conserves resources and minimises operating costs.
Speed-dependent rinse water volume
The CTR automatically adjusts the rinse water volume to the selected transport speed. Each stage only uses as much rinse water as is actually required for a first-class wash result. Rinse aid is also dosed dynamically and adjusted to the rinse water volume. This provides for an economical washing process and saves resources.

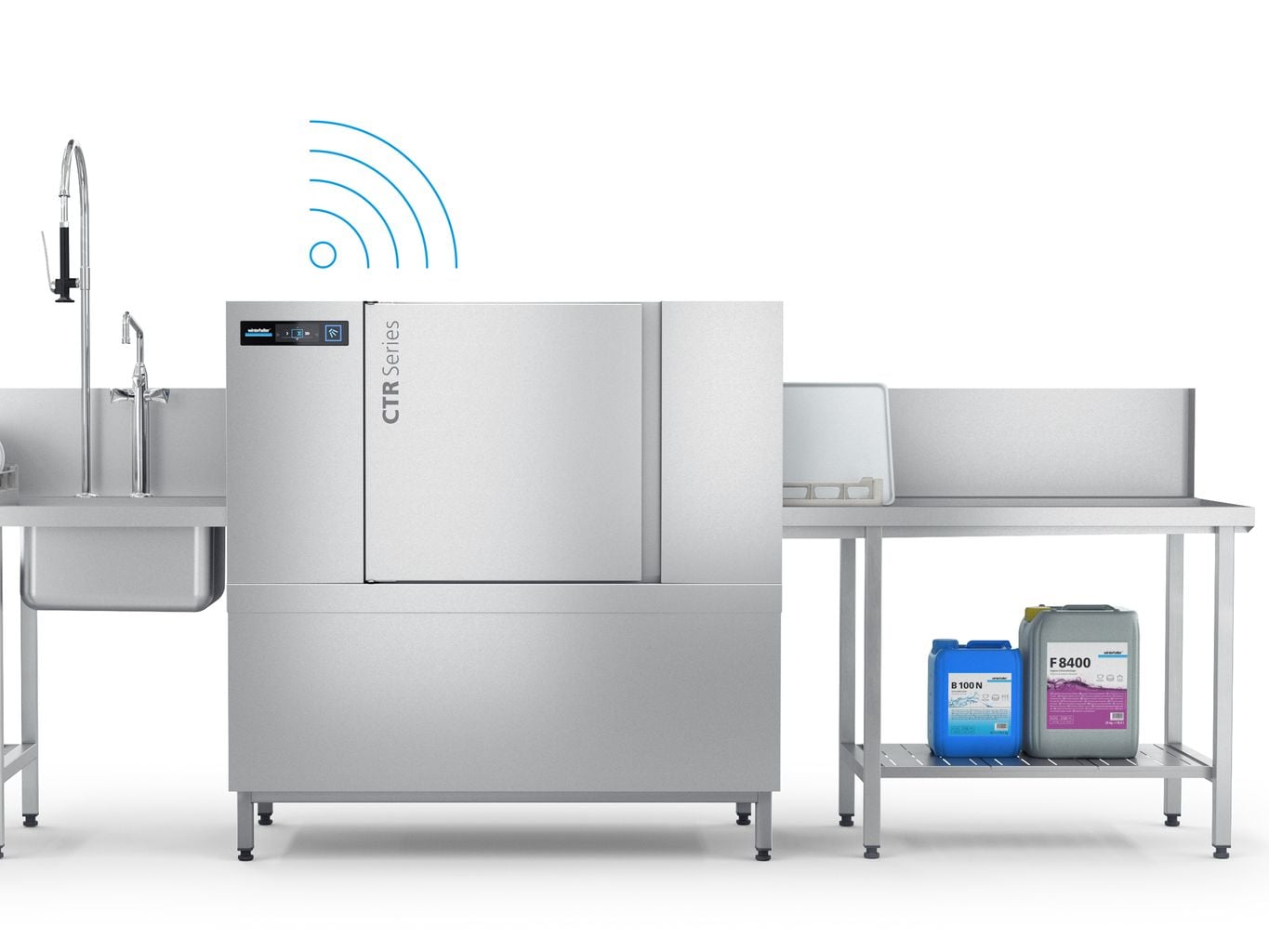

CONNECTED WASH
CONNECTED WASH can be used to analyse and evaluate all important machine data from the networked CTR and to access it from anywhere. If the system finds scope for optimisation in the washing process, CONNECTED WASH indicates this with specific recommended actions to improve efficiency. If a critical error occurs, the machine automatically sends a notification, ensuring absolute hygiene safety and greater efficiency. Automatic updates ensure that the software on the machine is always up to date and that new functions are available immediately.

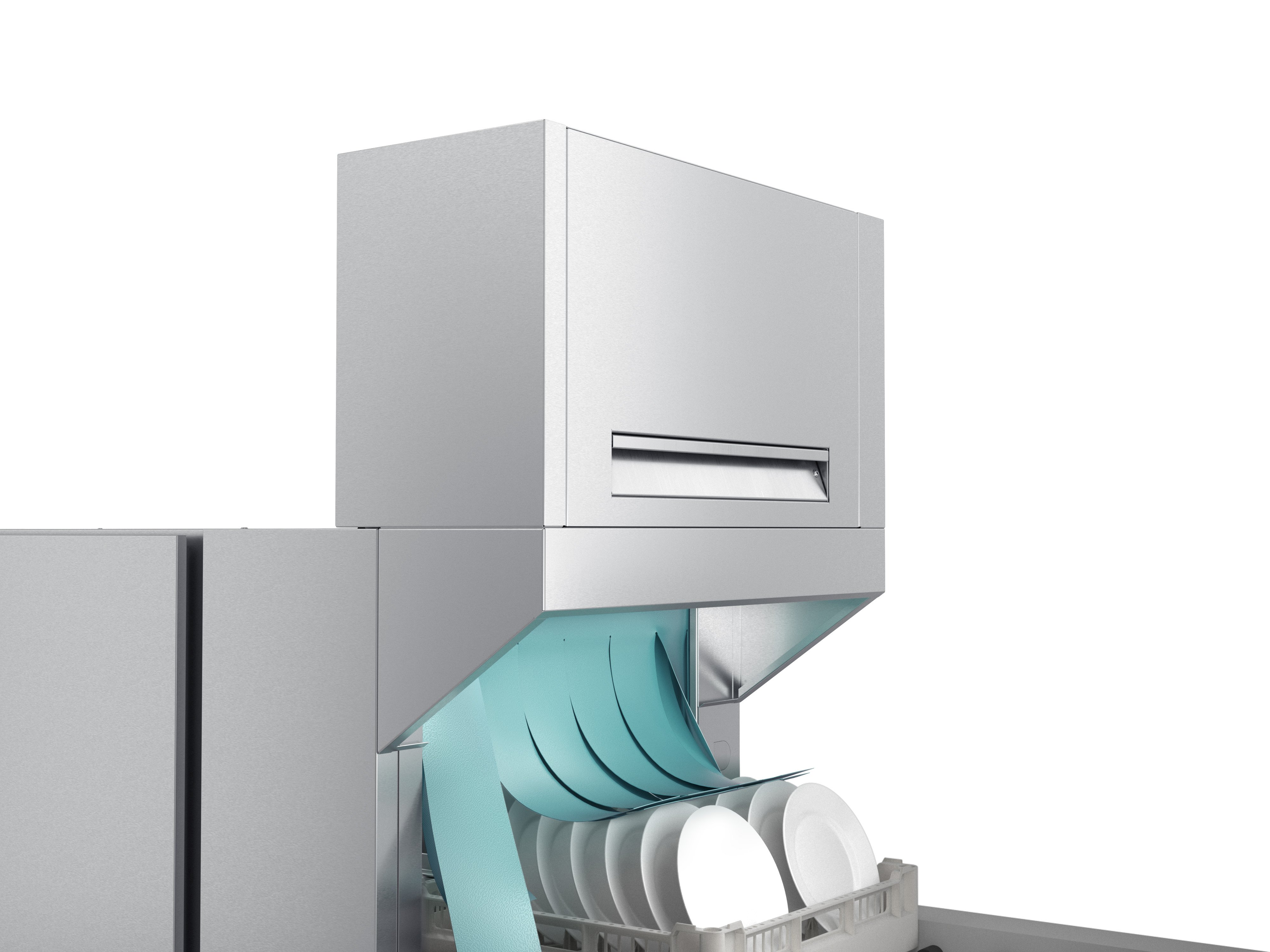

Heat recovery
The CTR makes smart use of energy resources for wash processes. The Energy exhaust air heat recovery system extracts the energy from the warm exhaust air to pre-heat cold inlet water. This is good for the environment, reduces energy consumption, lowers operating costs and also improves the kitchen climate.

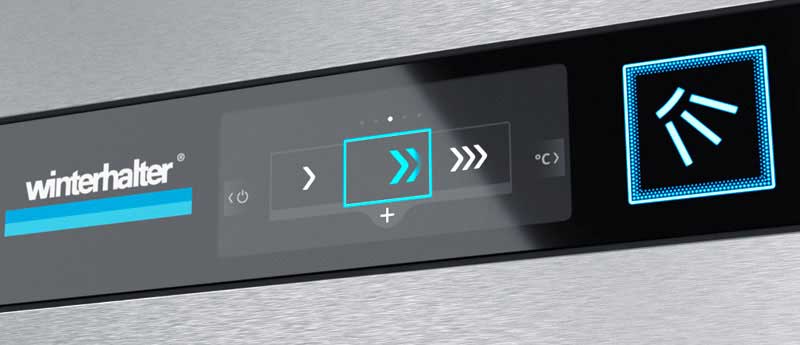

Smart touch display
The smart touch display is located on the infeed end of the CTR at the perfect working height: it features single-button operation, a language-neutral interface and self-explanatory pictograms. This ensures ergonomic, easy and safe operation of the machine. The glass display is highly robust and sensitive and can be operated reliably even when wearing gloves. During washing, the machine constantly displays the current hygiene status in the form of a traffic light. The current temperatures of each individual zone can also be accessed. These and other functions can be accessed by the operator, chef and service technician on three operating levels.

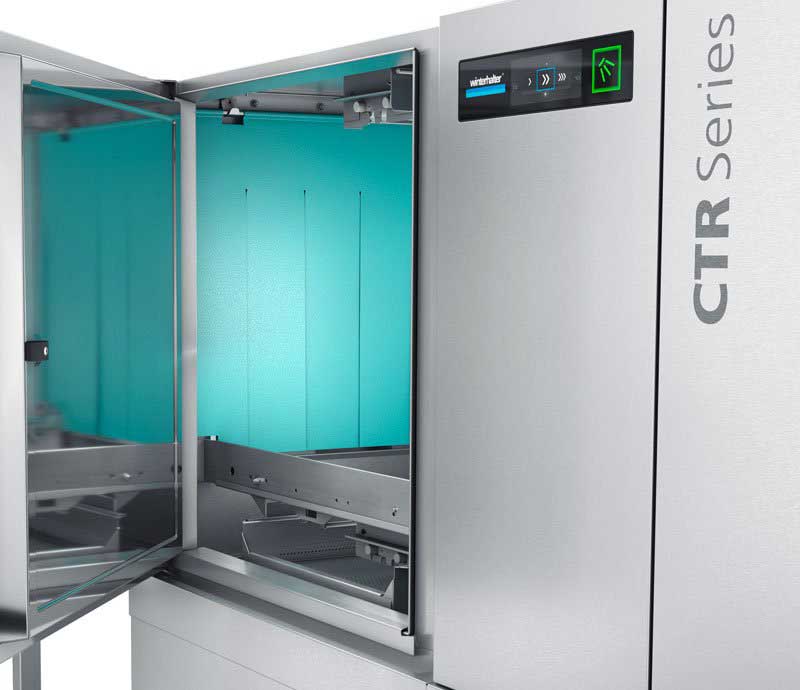

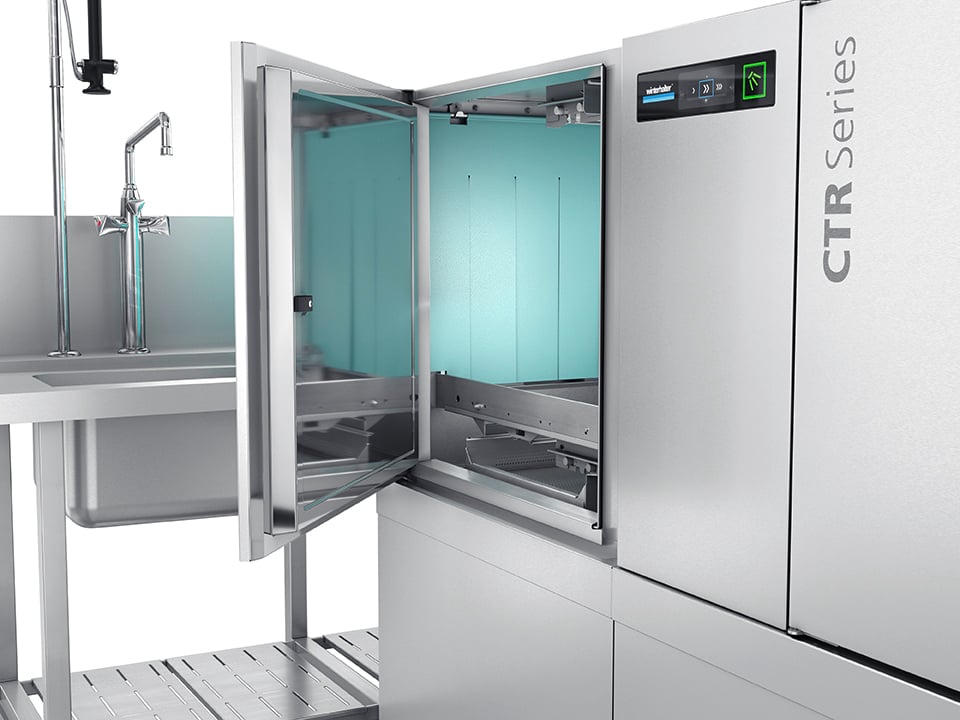

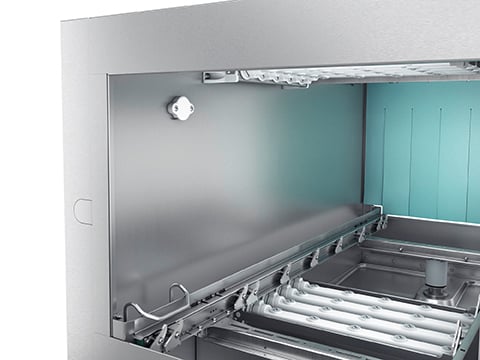

Hygiene doors
The 180° swivelling hygiene doors provide ergonomic access to the entire interior of the machine and allow easy and hygienic cleaning. This is where the big advantages over conventional lifting doors become apparent, because with the high-quality doors on the CTR Series, the insides are also easily accessible and can be cleaned if necessary. The double-skinned doors are deep-drawn, acoustically and energetically insulated and are a central component of the CTR hygiene concept.
Dual rinse
The CTR comes with a dual rinse system comprising a pumped rinse and fresh water rinse. This complete system returns optimum rinse results and minimises operating costs.
Item-controlled zone activation
The CTR uses water, energy and chemicals both purposefully and economically. The individual zones for pre-wash, main wash and rinse are only activated when there are actually wash items in the respective zone. This conserves resources and minimises operating costs.
CONNECTED WASH
CONNECTED WASH can be used to analyse and evaluate all important machine data from the networked CTR and to access it from anywhere. If the system finds scope for optimisation in the washing process, CONNECTED WASH indicates this with specific recommended actions to improve efficiency. If a critical error occurs, the machine automatically sends a notification, ensuring absolute hygiene safety and greater efficiency. Automatic updates ensure that the software on the machine is always up to date and that new functions are available immediately.
Heat recovery
The CTR makes smart use of energy resources for wash processes. The Energy exhaust air heat recovery system extracts the energy from the warm exhaust air to pre-heat cold inlet water. This is good for the environment, reduces energy consumption, lowers operating costs and also improves the kitchen climate.
Smart touch display
The smart touch display is located on the infeed end of the CTR at the perfect working height: it features single-button operation, a language-neutral interface and self-explanatory pictograms. This ensures ergonomic, easy and safe operation of the machine. The glass display is highly robust and sensitive and can be operated reliably even when wearing gloves. During washing, the machine constantly displays the current hygiene status in the form of a traffic light. The current temperatures of each individual zone can also be accessed. These and other functions can be accessed by the operator, chef and service technician on three operating levels.
Hygiene doors
The 180° swivelling hygiene doors provide ergonomic access to the entire interior of the machine and allow easy and hygienic cleaning. This is where the big advantages over conventional lifting doors become apparent, because with the high-quality doors on the CTR Series, the insides are also easily accessible and can be cleaned if necessary. The double-skinned doors are deep-drawn, acoustically and energetically insulated and are a central component of the CTR hygiene concept.

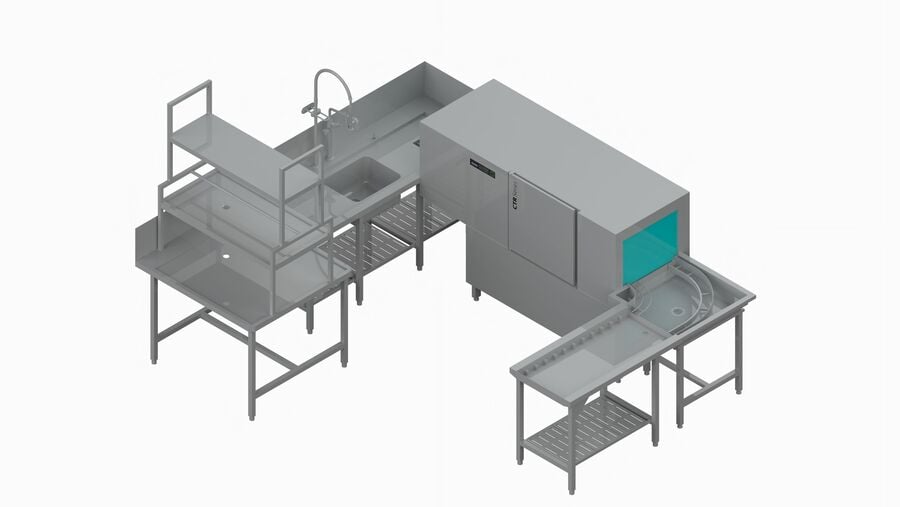

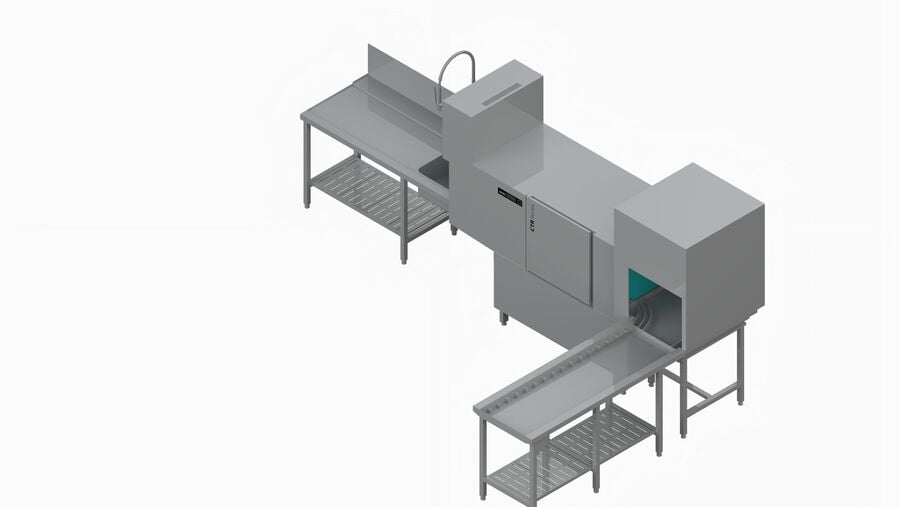

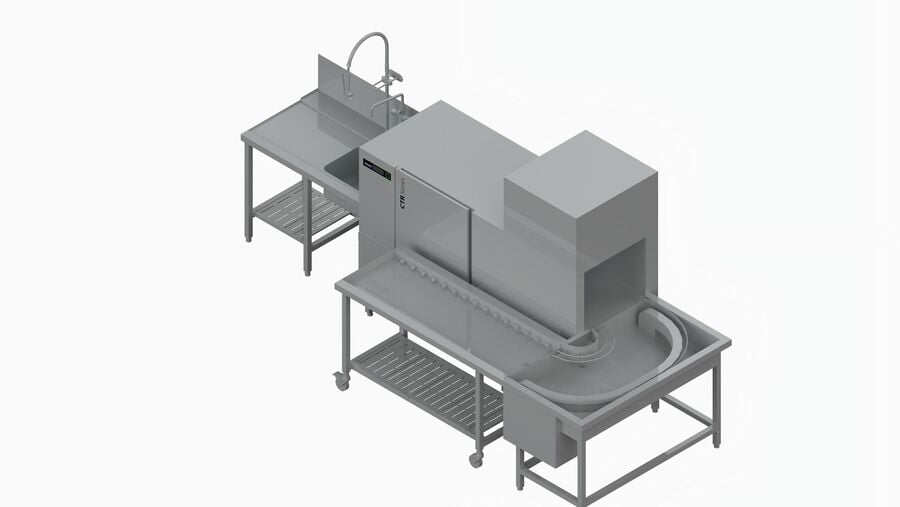

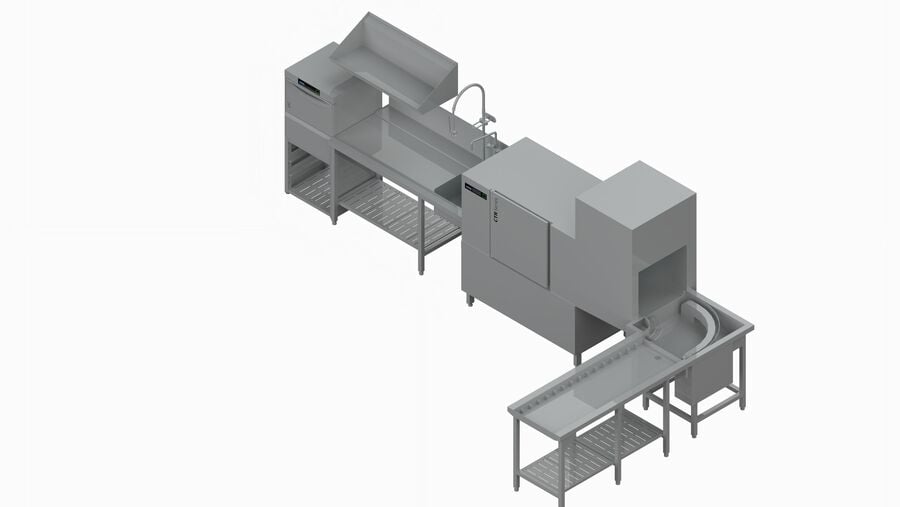

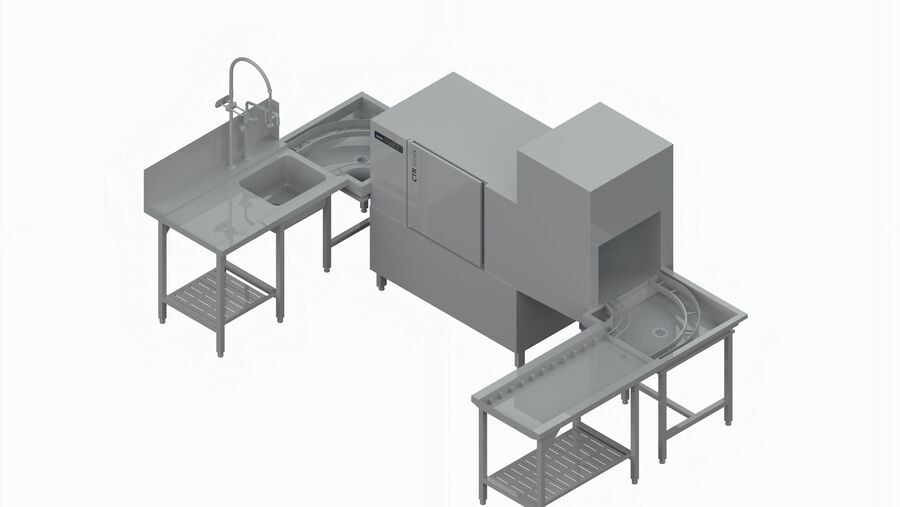

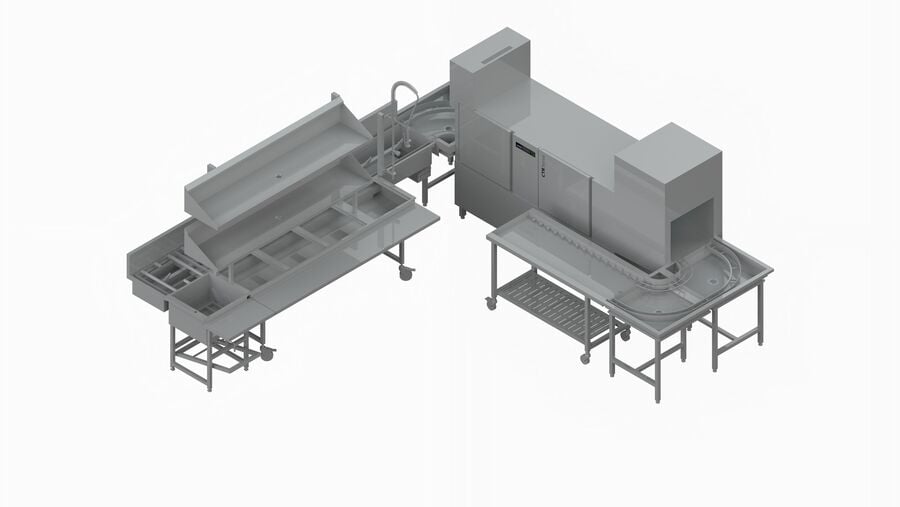

Professionally planned. Neatly solved.
Clever spatial planning. Functional and energy-efficient technology. Economical operating processes and maximum hygiene safety. The demands placed on a professional commercial kitchen are high. The CTR Series helps kitchen planners develop innovative operating concepts: with high-performance conveyor dishwashers that can be flexibly configured and perfectly matched to suit each customer's situation.

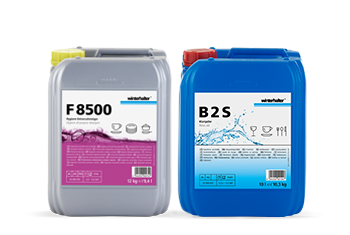

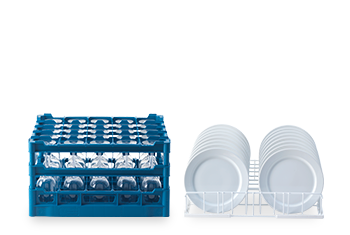

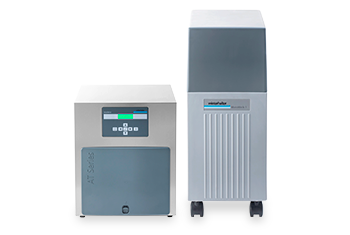

THE WINTERHALTER SYSTEM
Cleanliness and hygiene. Each one of our products plays its part. Together they deliver the perfect wash result. Welcome to the complete Winterhalter system
